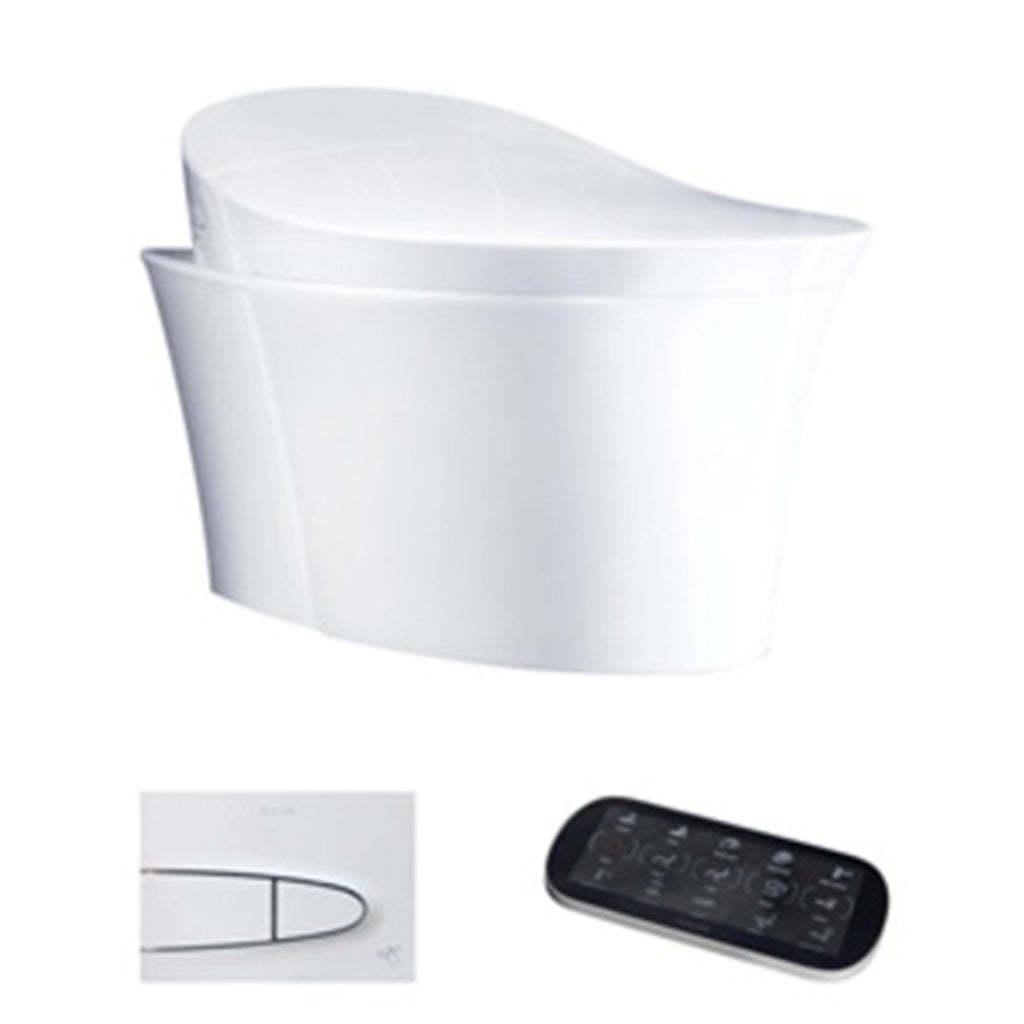

KOHLER VEIL INTELLIGENT RIMLESS WALL HUNG TOILET W/ REMOTE WASHLET ELONGATED GLOSS WHITE

Toilet Features:

• Touchless flush button panel in Honed White.
• Ergonomic french curve seat with antibacterial material.
• Sensor activated auto open and close function for seat lid
• Insulated in-wall cistern fully framed.
• Automatic, touchless or manual Dual flush (4.5/3L)
• Built in LED night-light.
• Deodouriser function.
• Back up shut-off valve located on cistern.
• Rimless pan design.
• Vitreous china..

Technical Information :

• The Veil Wall Hung Integrated bidet and toilet features touchless flushing, one touch remote control functionality, seamless, hygienic rimless bowl, and built in UV self-cleansing bidet. Meticulously designed, Veil offers stunning contemporary lines and the ultimate in individual comfort.
• Kohler Veil requires installation by both a registered Plumber and Electrician. The Kohler Veil must be installed in accordance with AS/NZS 3500.1, which will require the installation of a high hazard backflow prevention device (not supplied), if not already installed on site.Please consult with your registered Plumber or Hydraulic Consultant.
• Wall hung toilet weight recommended user weight maximum of 136kg.

Bidet Features

• Instantly heated water with stainless steel wand.
• Spray wand features adjustable water pressure and temperature, and oscillate and pulsate functions.
• Air blower and heated seat with adjustable temperature.
• Self cleaning and UV sanitising nozzle
• Seat maximum weight limit: 200kg.

Package Contents:

• Veil wall hung toilet with integrated bidet
• In wall cistern Hydro tower 500 (4.5/3L)

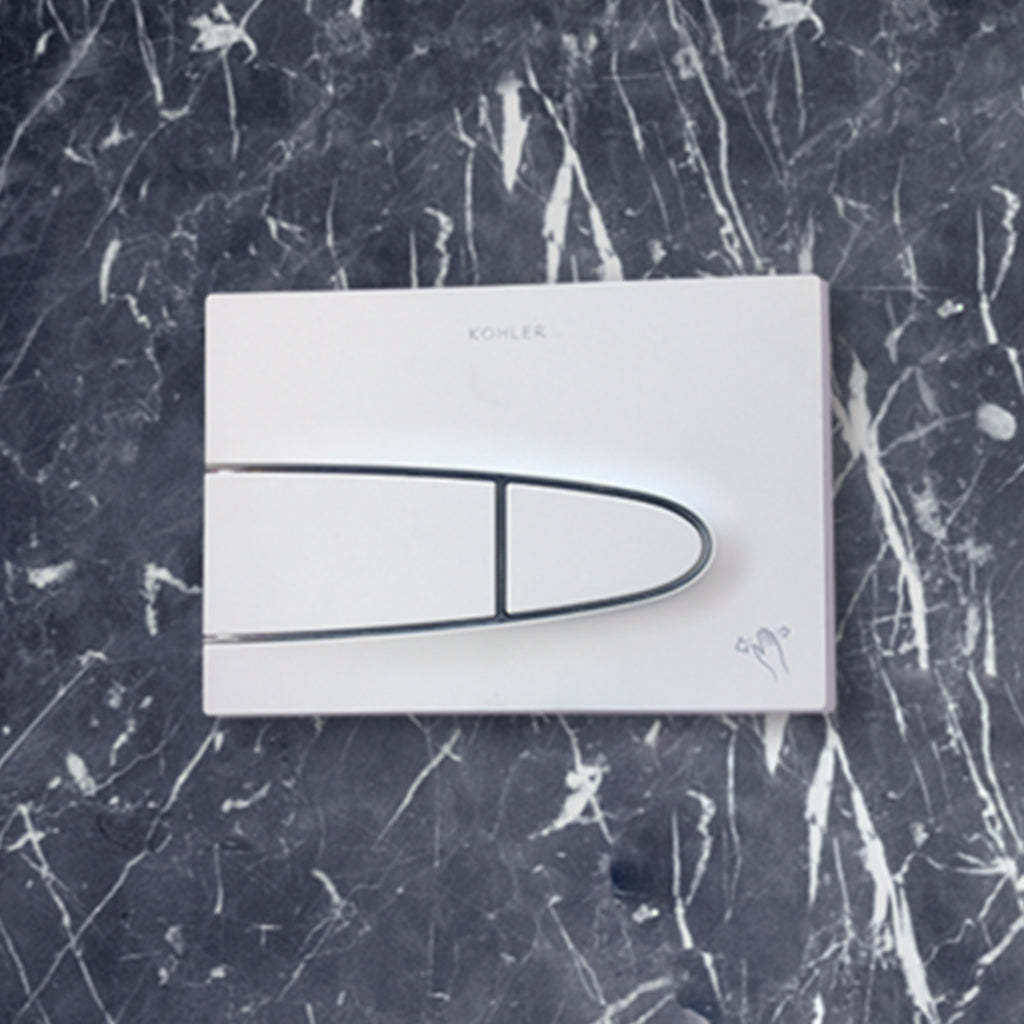

• Touchless flush button panel

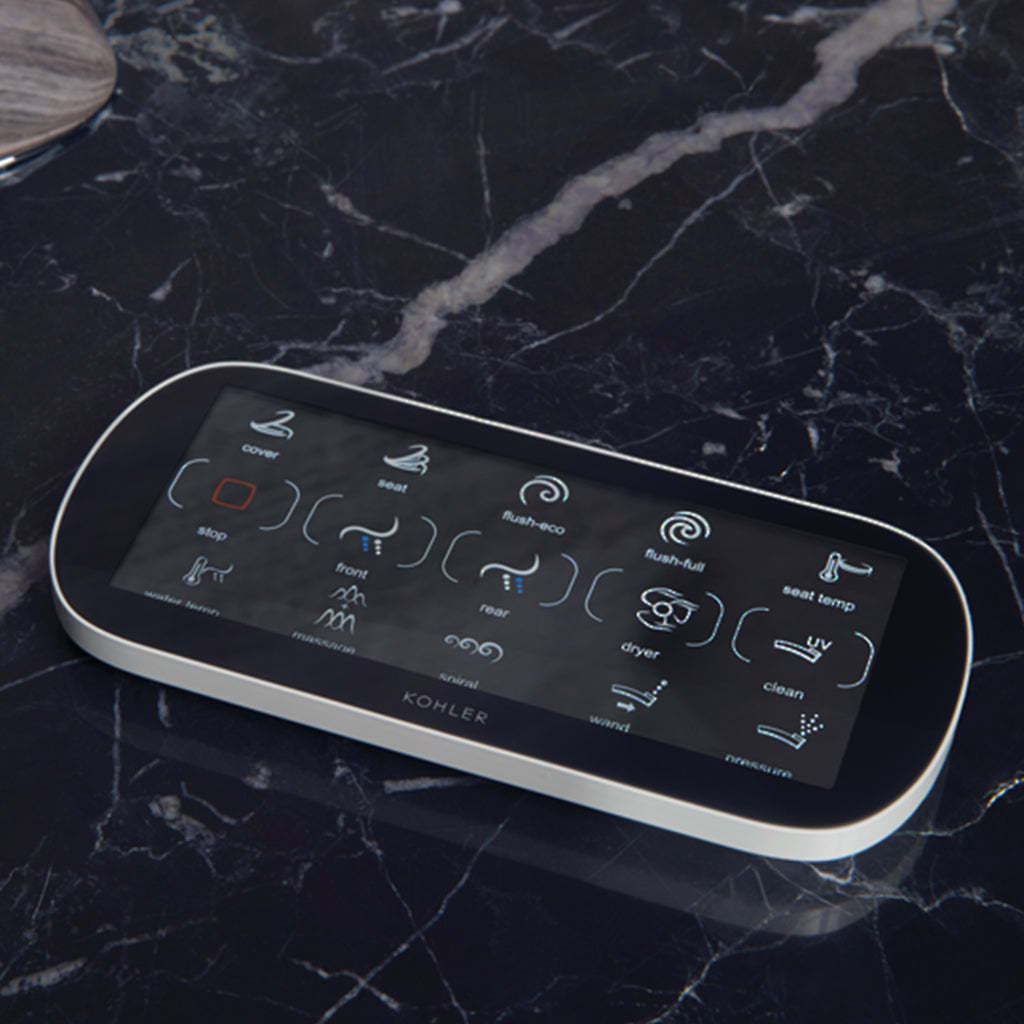

• Wireless one touch remote
• Waste pipes (S & P trap) & straight inletconnection pipe

Warranty

• 3 Years Warranty

Installation Notes:

• Water supply pressure range: Min 70kPa0 Max 500kpa.
• Power supply requirements: Dedicated 10A min, 220-240V AC, 50/60Hz supply with ELCB or GFC.
• Rated power:1000W. Max instant power: 1600W.
• In-wall cistern has an adustable height and is designed to be fixed to the floor & studs using coach screws inot suppliedIMPORTANT: This toilet must be installed in accordance with AS/NZS 3500.1 Plumbing and Drainage.
